CAFA Tech UGV

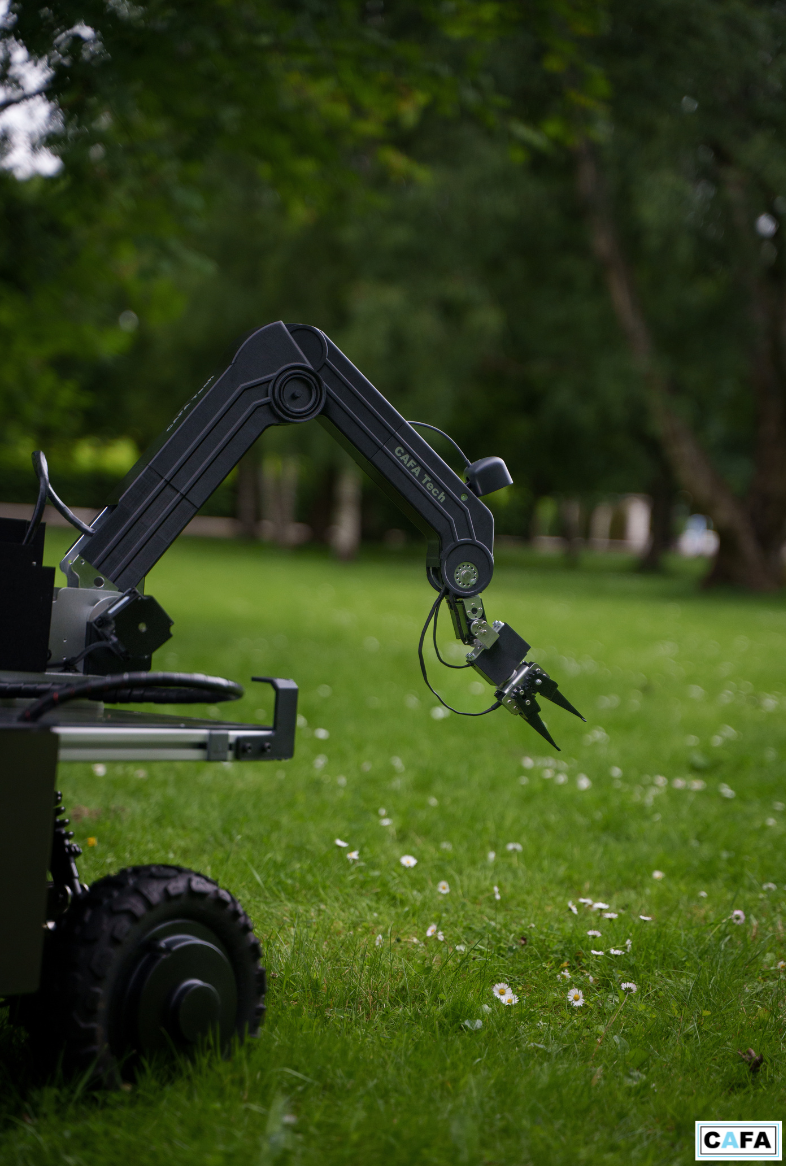

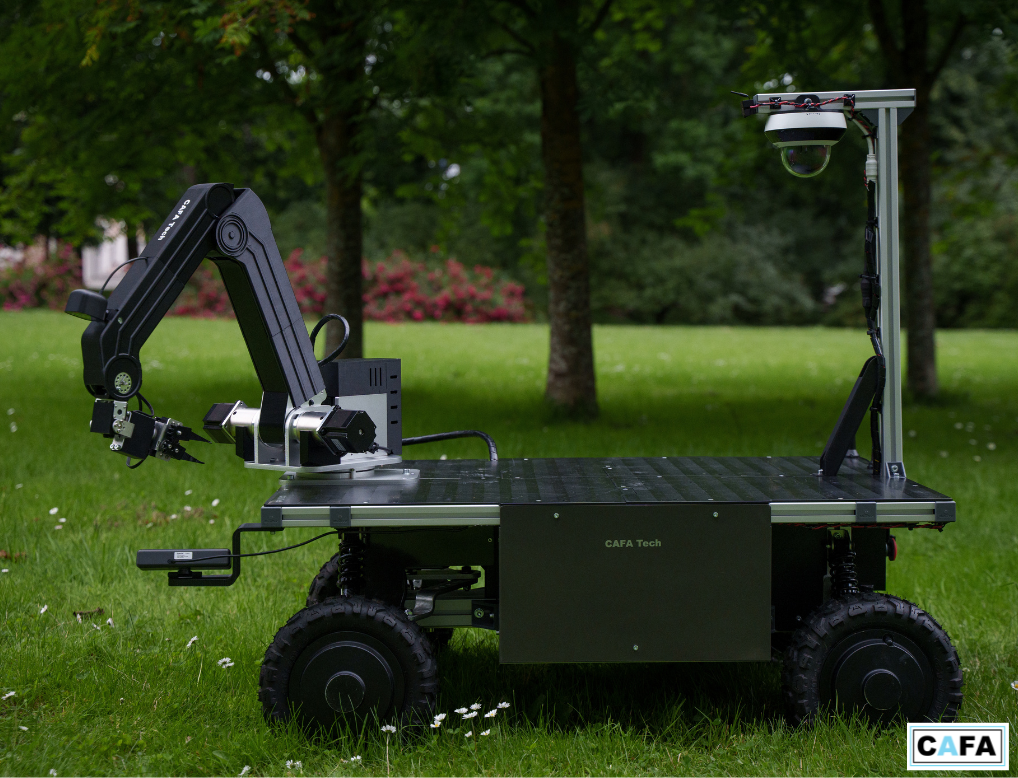

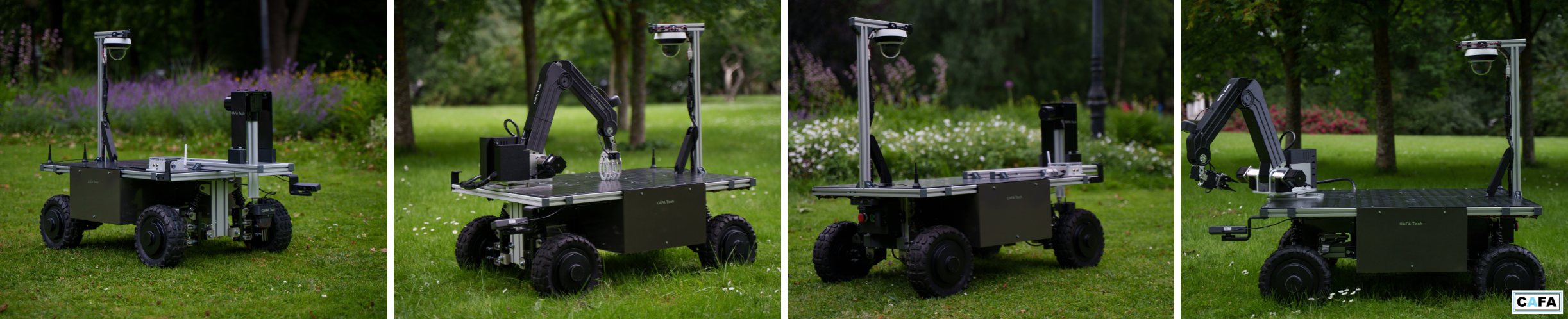

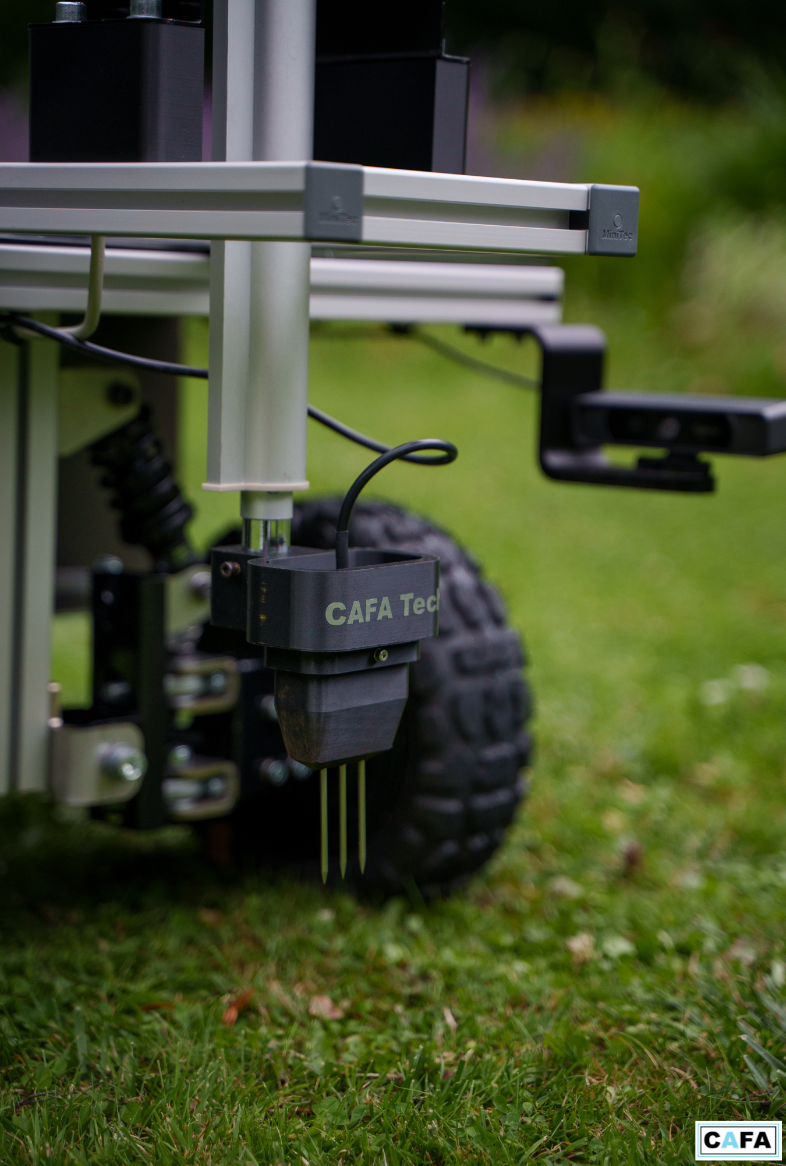

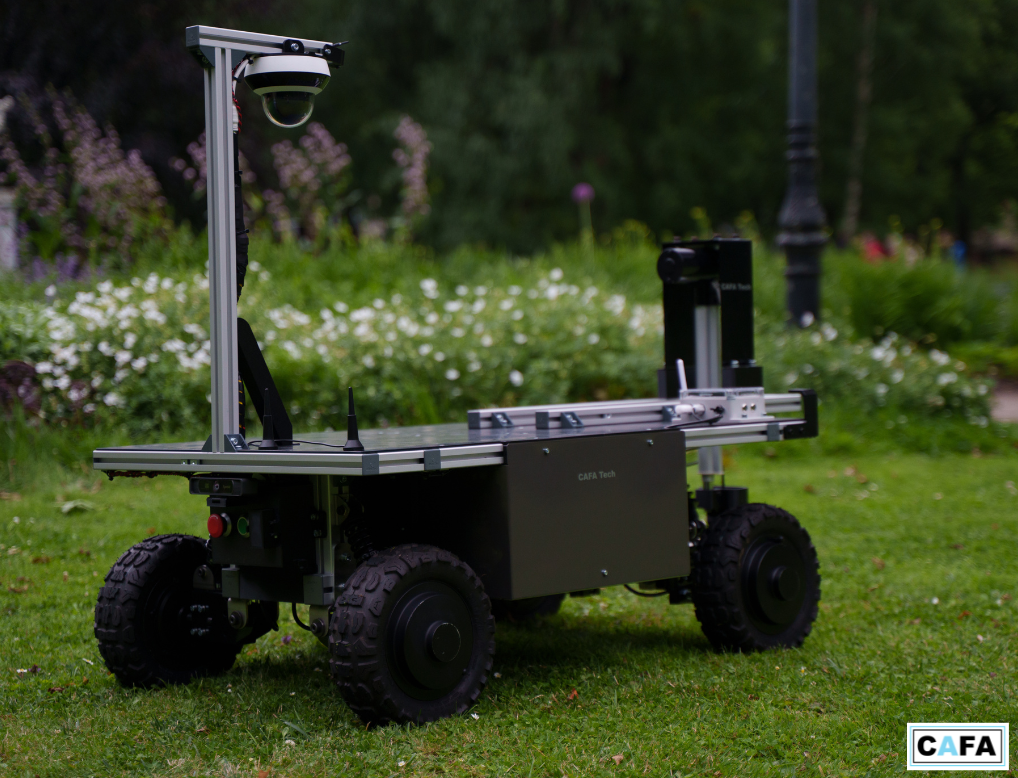

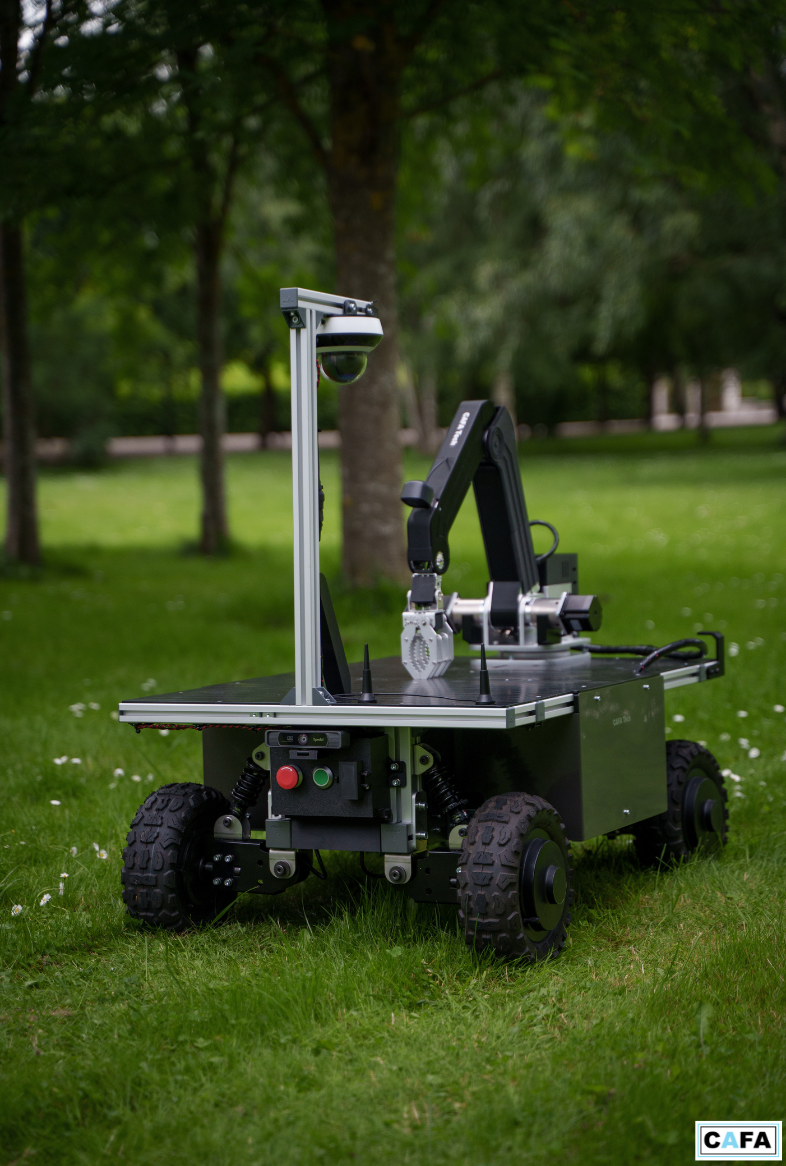

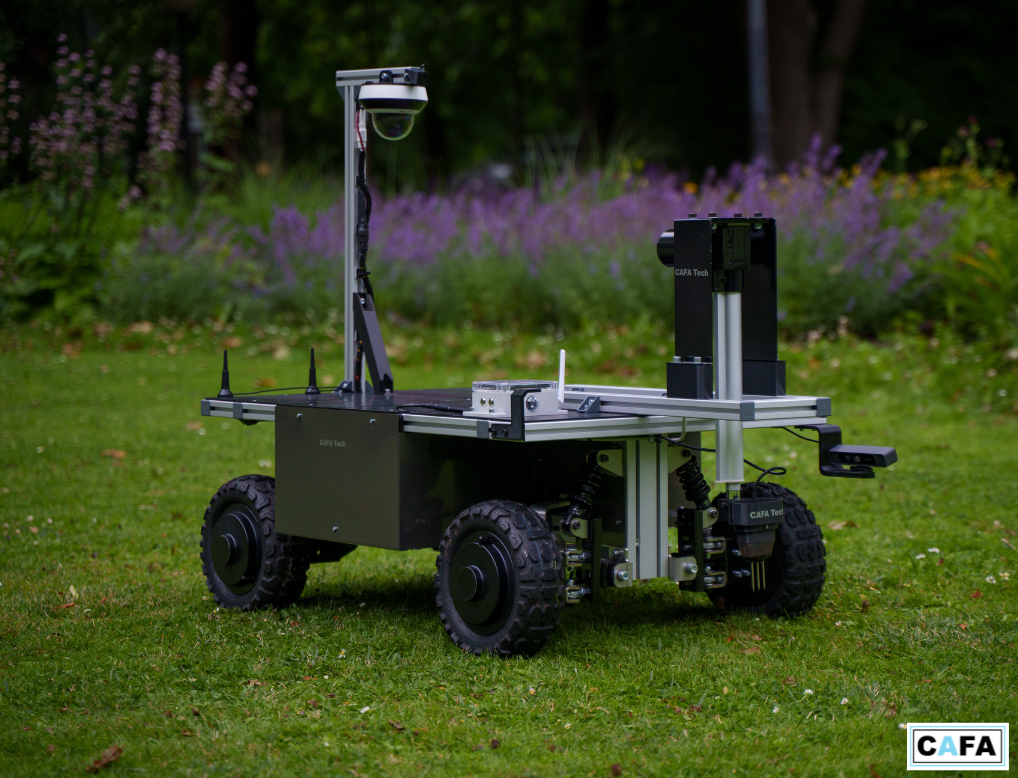

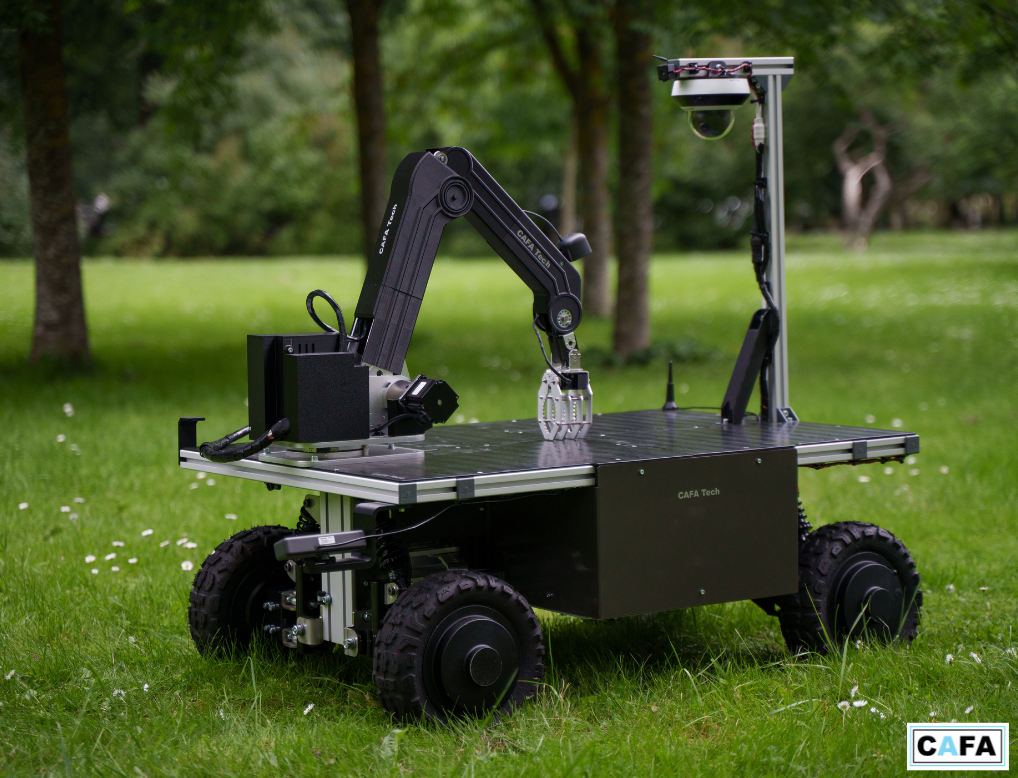

CAFA Tech Unmanned Ground Vehicle (UGV) is suitable for both indoor and outdoor use. It can navigate small obstacles such as stairs, curbs, and sandy terrain. Different grippers can be attached to the robotic arm for different operations. When equipped with a robotic arm, it becomes a versatile tool for handling objects—picking items up from the ground, placing them onto the robot, or transporting them between locations. The linear actuator is ideal for tasks that require precise linear motion, such as taking soil samples, drilling, or adjusting sensor positions.
CAFA Tech UGV Key Specifications:
- Dimensions: 1050 × 750 × 400 mm
- Maximum height (with camera and arm): up to 1000 mm
- Weight: 80 kg
- Ground clearance: 170 mm
- Payload capacity: 100 kg
- Drive system: 4-wheel drive with suspension
- Usage: Suitable for outdoor and indoor environments
- View: 360-degree visual coverage
- Operating time: Up to 3 hours
- Control: Manually remote-controlled
- Equipment: Robotic arm and linear actuator
- Connectivity: SIM card modem, Wi-Fi, or optical cable
